Next generation fire fighting

The Minimax MXOne high-performance firefighting turbine represents a new generation of stationary fire protection systems. This unique system has a 360° operating range and enables the highly  precise, targeted use of water mist from a safe and great distance. With full jet, it reaches a discharge range of up to 80m. During a fire, the water mist absorbs a huge amount of energy, cools particularly effectively and reaches hidden fire sources due to the three-dimensional mode of action. It binds smoke gas, pollutants and odors and can quickly develop its effect over large areas without, like classic monitors with their focused jets, dispersing burning material and possibly contributing to the spread of fire.

Advantages at a glance

  • Targeted adjustment of spray pattern and extinguishing agent to the burning material
  • Rapid firefighting and ambient cooling through sophisticated water mist technology
  • Effectiveness (liquids, plastic waste, wood fire) tested several times, confirmed by independent bodies
  • Automatic or manual precision targeting in full jet (up to 80m)
  • Flexible utilization of water/salt-water and foam
  • Simple and secure remote control operation
  • 360° rotation, tilting angle -19° to +43°
  • Easy integration into existing extinguishing systems
  • Smoke suppression by powerful air blower
  • Mobile and stationary installation alternatives



Design


1
Nozzle ring
2
Operating pressure 4 to 16 bar (58 to 232 psi)
3
Configurations: nozzle head (water mist) or jet pipe (spray jet)
4
Max. flow rate 4,000 l/min
5
Water connection 5" (DN125)
6
Summer and winter operation | -15 °C to +55 °C (5 °F to 131 °F)
7
Power connection 400 V/50 Hz
8
Weight 945 kg (2,083 lbs)
9
Fully automatic or manual control
10
LED lighting (2 x 3,000 lumen)
11
Tilting angle -19° to +43°
12
Propeller power 12.5 kW at 2,910 rpm
13
Rotation angle 360°

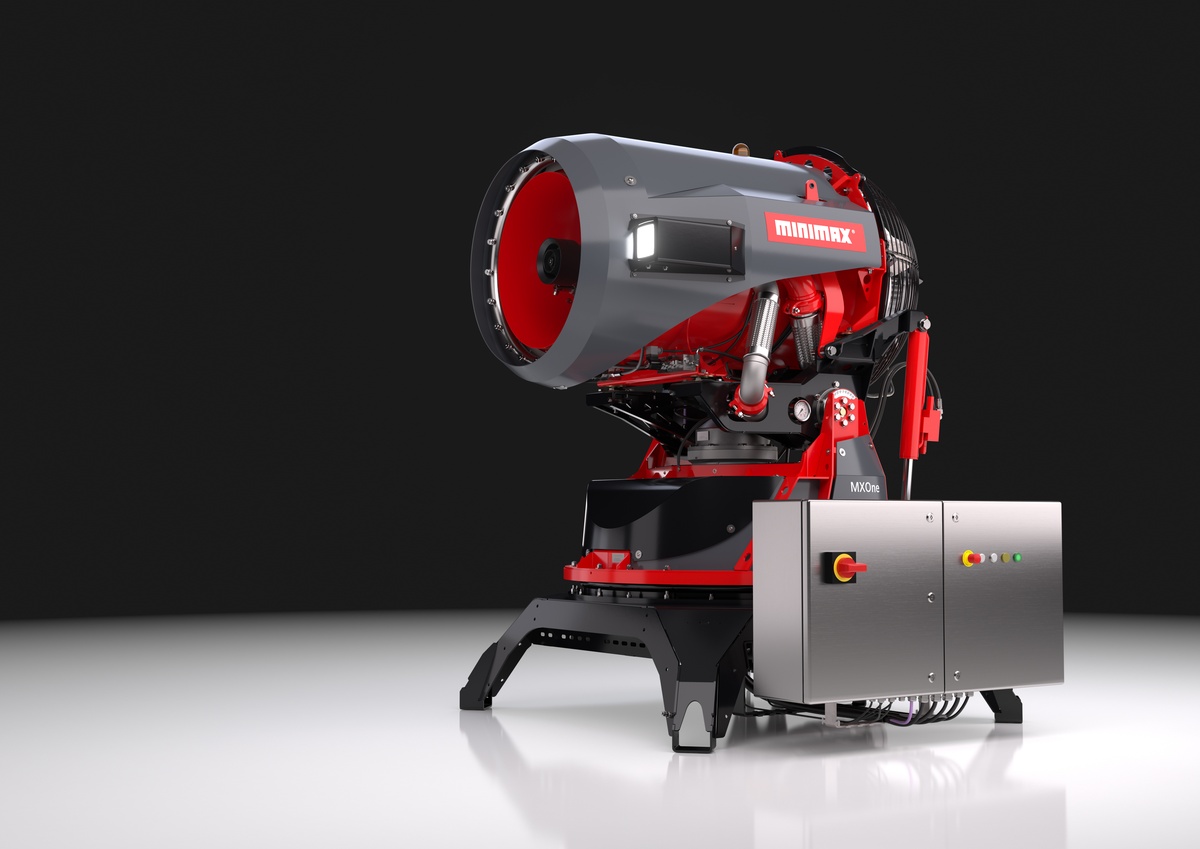

Design of the MXOne High Performance Firefighting Turbine

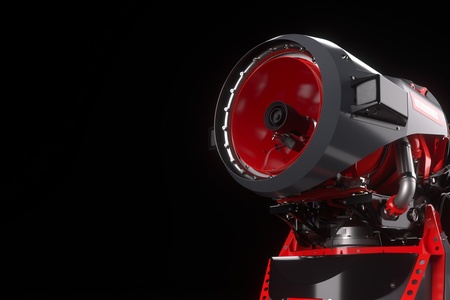

  1. Nozzle ring
  2. Operating pressure 4 to 16 bar (58 to 232 psi)
  3. Configurations: nozzle head (water mist) or jet pipe (spray jet)
  4. Max. flow rate 4,000 l/min
  5. Water connection 5" (DN125)
  6. Summer and winter operation | -15 °C to +55 °C (5 °F to 131 °F)
  7. Power connection 400 V/50 Hz
  8. Weight 945 kg (2,083 lbs)
  9. Fully automatic or manual control
  10. LED lighting (2 x 3,000 lumen)
  11. Tilting angle -19° to +43°
  12. Propeller power 12.5 kW at 2,910 rpm
  13. Rotation angle 360°

Function


Performance

Minimax engineers test MXOne in full-scale fire tests

With MXOne, broadband risk scenarios can be safely controlled by using different extinguishing media. The extinguishing turbine can be operated with potable and salt water, with and without foam agent. The spray patterns range from fine water mist to full jet. The high-performance extinguishing system achieves a throughput of up to 4,000 liters per minute with a throw distance of up to 80m.

Powerful and operational 24/7

  • Discharge range of up to 75 m due to special turbine effect
  • Suitable for use in summer and winter (indoors and outdoors)
  • Also operates with seawater and foam additives
  • Low operating pressure means that the device can be connected to the local mains water supply
  • Sturdy, industrial-grade design
  • Available as a stationary and a mobile version

 Efficient fire protection - from water mist to full jet mode

  • An ideal solution for many areas of application
  • Spray mode during operation can be adapted to the fire scenario and fire load
  • Water mist mode reduces the quantity of water required as a result of the cooling and extinguishing effect
  • A gentle extinguishing water feed prevents burning material from spreading

Mobility

Hochleistungs-Löschturbine MXOne

MXOne is designed for use both inside and outside buildings. The extinguishing system can be installed on the ground and elevated on a tower with mounting frame. The extinguishing turbine covers a large effective range. It can be tilted from -19° to +43° and has a rotation angle of 360°.

360° rotation for maximum flexibility

  • Rotation range means all-round coverage

  • Fast rotation and precise angle adjustment
  • Pipe connections in the rotation area free from wear and tear due to special construction

Quick to rise and tilt with permanent control of positioning

  • Infinitely variable navigation: tilting angle from -19° to +43°

  • Variable discharge distance
  • Position sensors indicate the exact alignment of the turbine on the control panel

Installation Alternatives

MXOne on Trailer or Rack

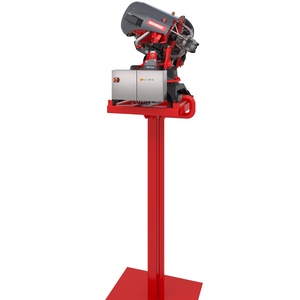

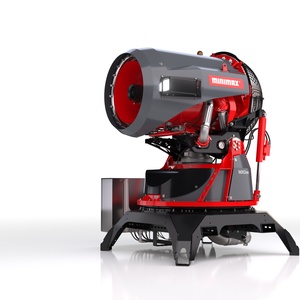

MXOne can be operated either fully automated via IR camera and industrial fire detector technology or targeted to a fire source manually by remote control. Stationary mounting on the ground is possible as well as elevated installation on a tower.

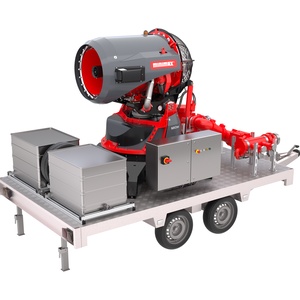

Mobile installation on trailer: The installation on a trailer with prepared connections for electricity and water allows maximum mobility and flexibility. Quickly brought into position and connected to the local electricity and water supply (fire department supply), MXOne can help to realize reliable fire protection in almost any site.

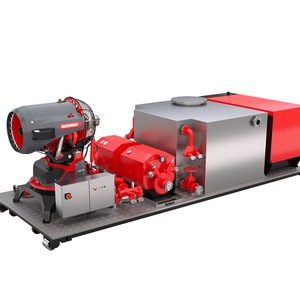

Mobile version with its own power and water supply: Mounted on a flat-rack container with own diesel power generator and an intermediate tank with 9,000 l as well as a fire department supply and sprinkler pump with 8 bar up to 1,800 l / min.

Control

Hochleistungs-Löschturbine MXOne

The control and alignment of the extinguishing turbine can be fully automatic. For this purpose, the information from at least two fire detectors (e.g. UniVario industrial fire detectors or infrared cameras) is evaluated in the fire alarm control panel and the coordinates of the fire source are determined exactly from this before MXOne is activated. Alternatively, manual control of the turbine is always possible. Depending on the operator's requirements, both stationary and mobile control variants can be implemented.

Control by fully automatic extinguishing operation with industrial detector and camera technology or:

  • Fire detection and extinguishing control panel (e.g. Clunid FMZ6000).
  • Control panel
  • Wall panel
  • Radio remote control


Effectiveness

Hochleistungs-Löschturbine MXOne

MXOne is a complex high-performance extinguishing system that has had to prove its reliability in numerous full-scale fire tests. With MXOne, Minimax customers receive a system that sets new standards in supporting fire protection.

The effectiveness of MXOne has been tested several times and confirmed by independent bodies!

Among others by accredited fire protection certification bodies such as

  • bSafe,
  • DMT,
  • MPA Dresden
  • FlameCert

Successful fire and extinguishing tests with

  • Water (full jet),
  • water mist and
  • foam (mixture)

Areas of use

Typical requirements for systems to be used in harsh, industrial environments: Resilience, reliability and efficiency. MXOne fully meets these requirements and, despite its robust design, is easy to operate and requires little maintenance. Thanks to turbine technology, MXOne achieves throwing distances of up to 80 m and can be lifted and tilted quickly and continuously. This allows the throwing distance to be adjusted at any time. The extinguishing system can be used in areas with an ambient temperature of -15° to 55° C.

  • External and internal storage areas

  • Material loading and unloading stations
  • Tanks with flammable liquids or bulk materials
  • Aircraft hangars or heliports
  • Substations and transformers
  • Tunnels
  • Protection and cooling of adjacent areas

Branches

Due to the flexibility in the use of different extinguishing media and the convincing performance data, MXOne is suitable for use for supporting fire protection in numerous branches of industry. Wherever fires need to be fought efficiently with pinpoint accuracy and from a great distance, the high-performance extinguishing system can make a decisive contribution to corporate safety.









Certifications

The effectiveness of MXOne has been extensively tested for liquid fires, kerosene, plastic waste and wood and confirmed by accredited and independent fire protection certification bodies such as DMT, MPA Dresden and FlameCert.

DMT
MPA Dresden
